| Mode |

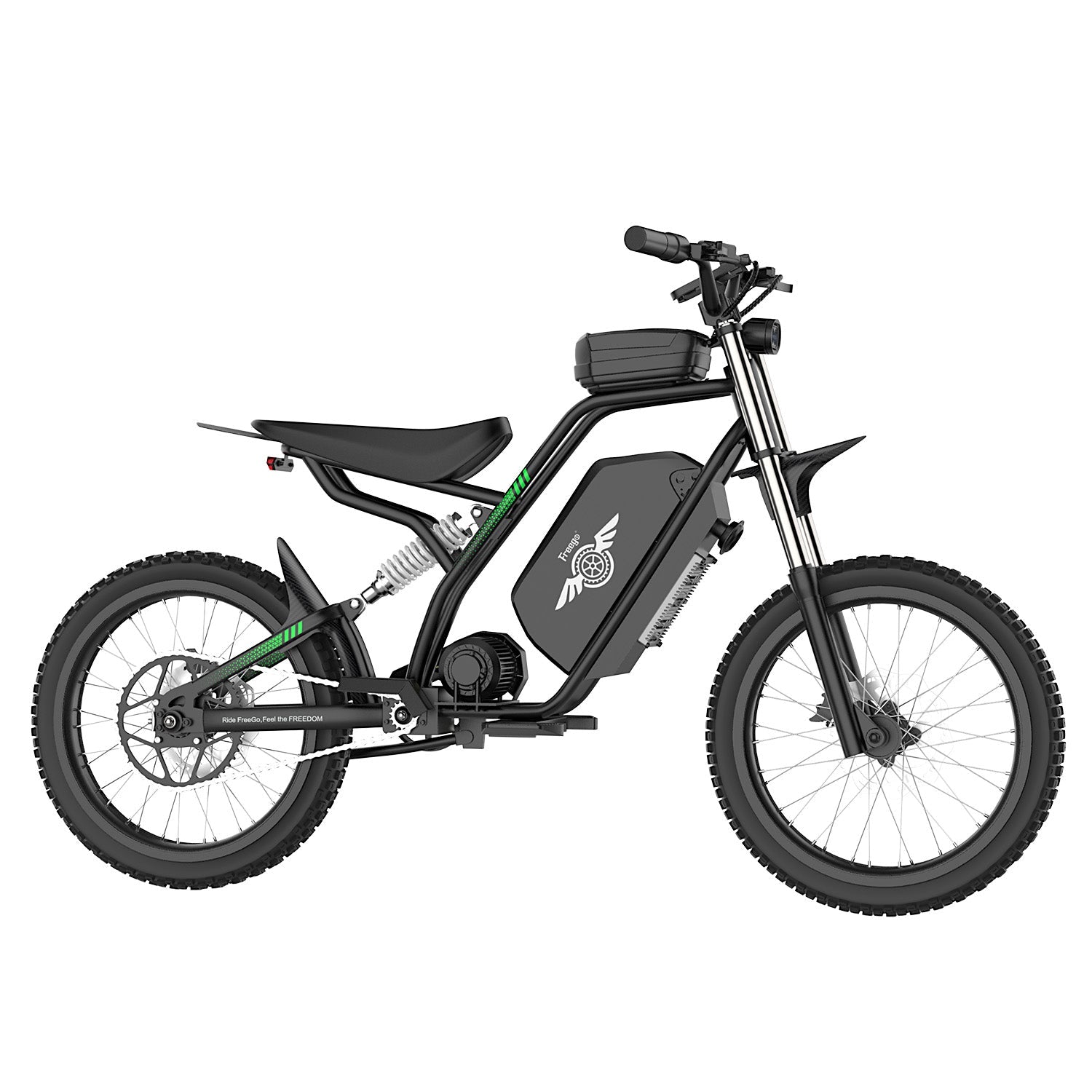

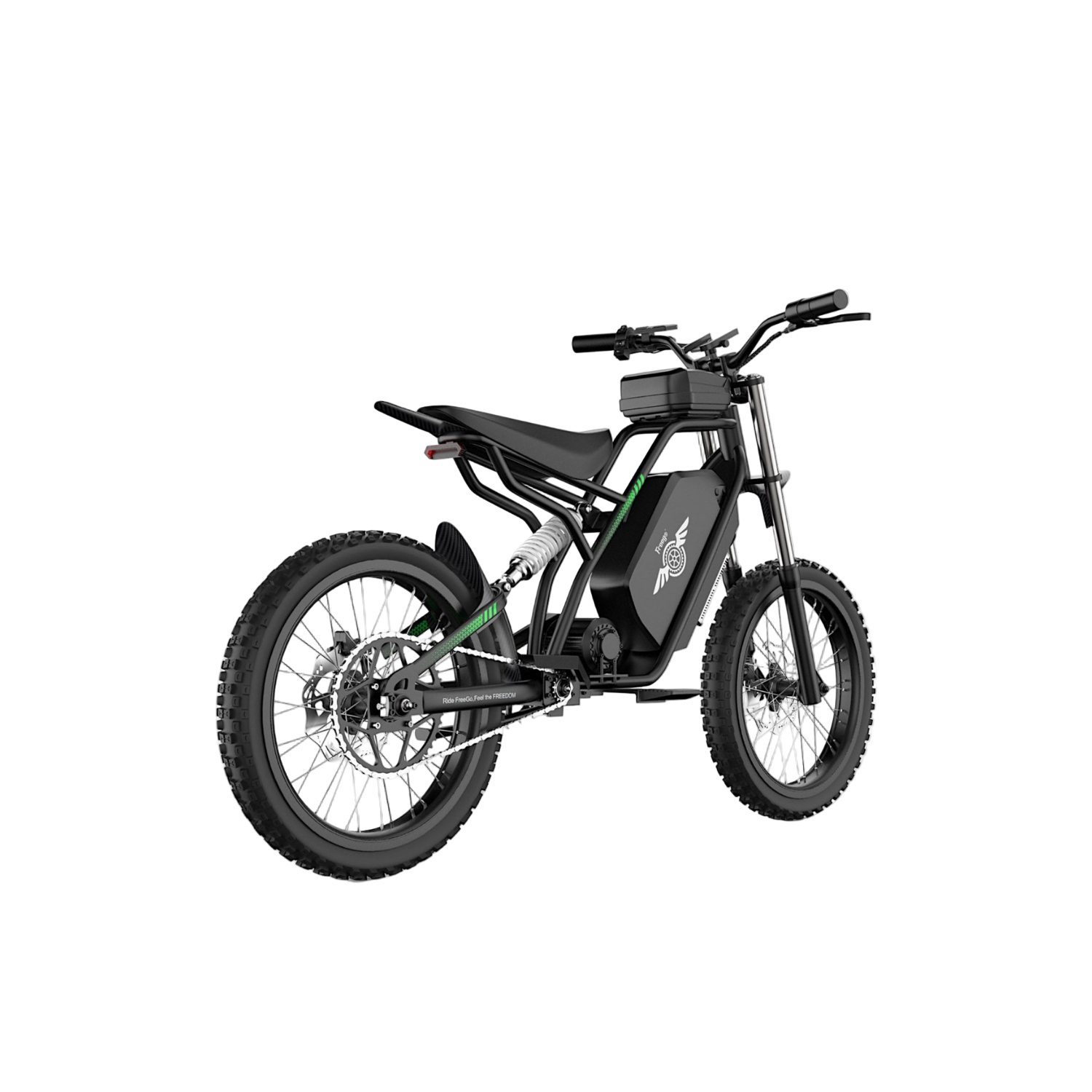

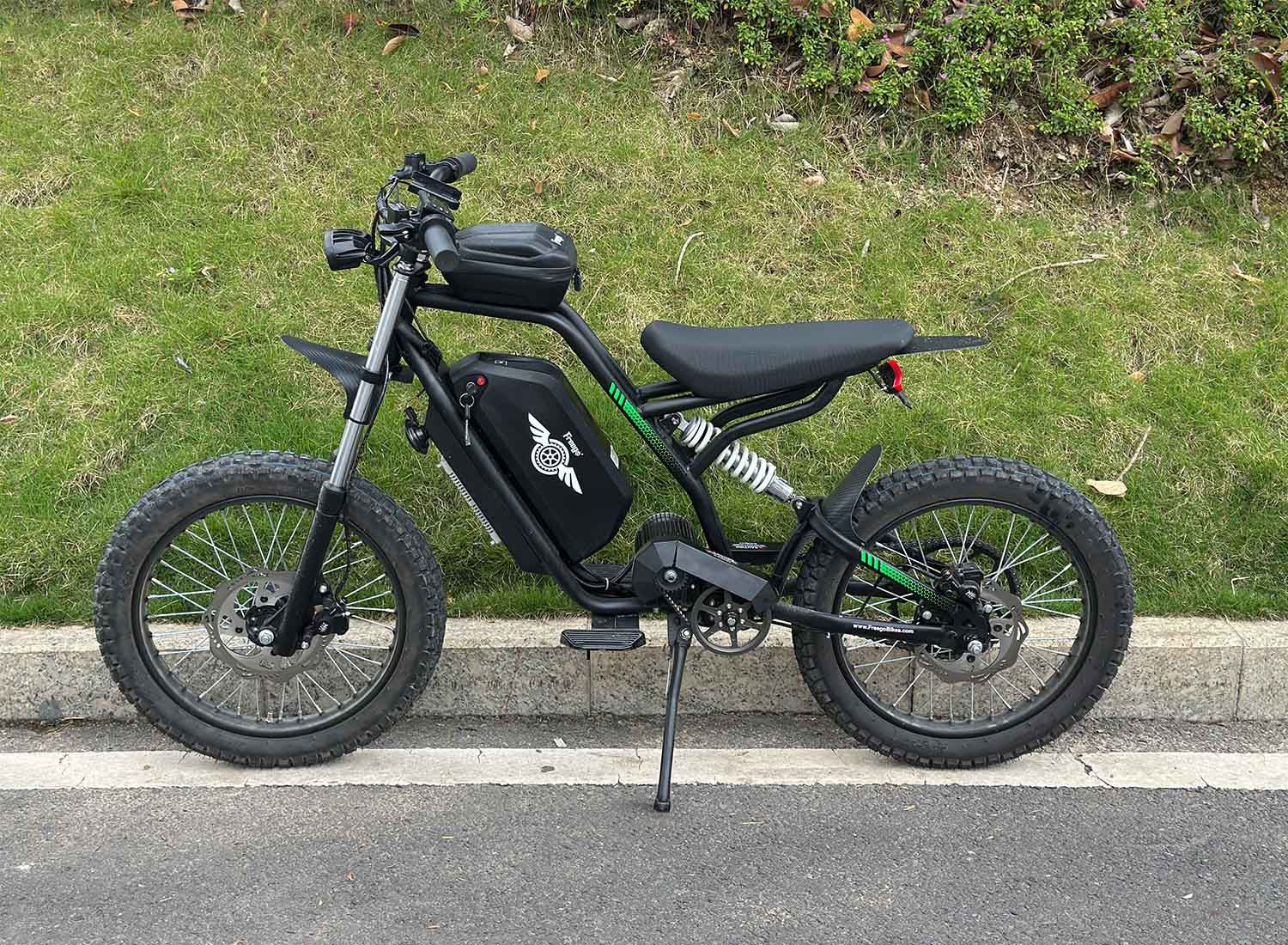

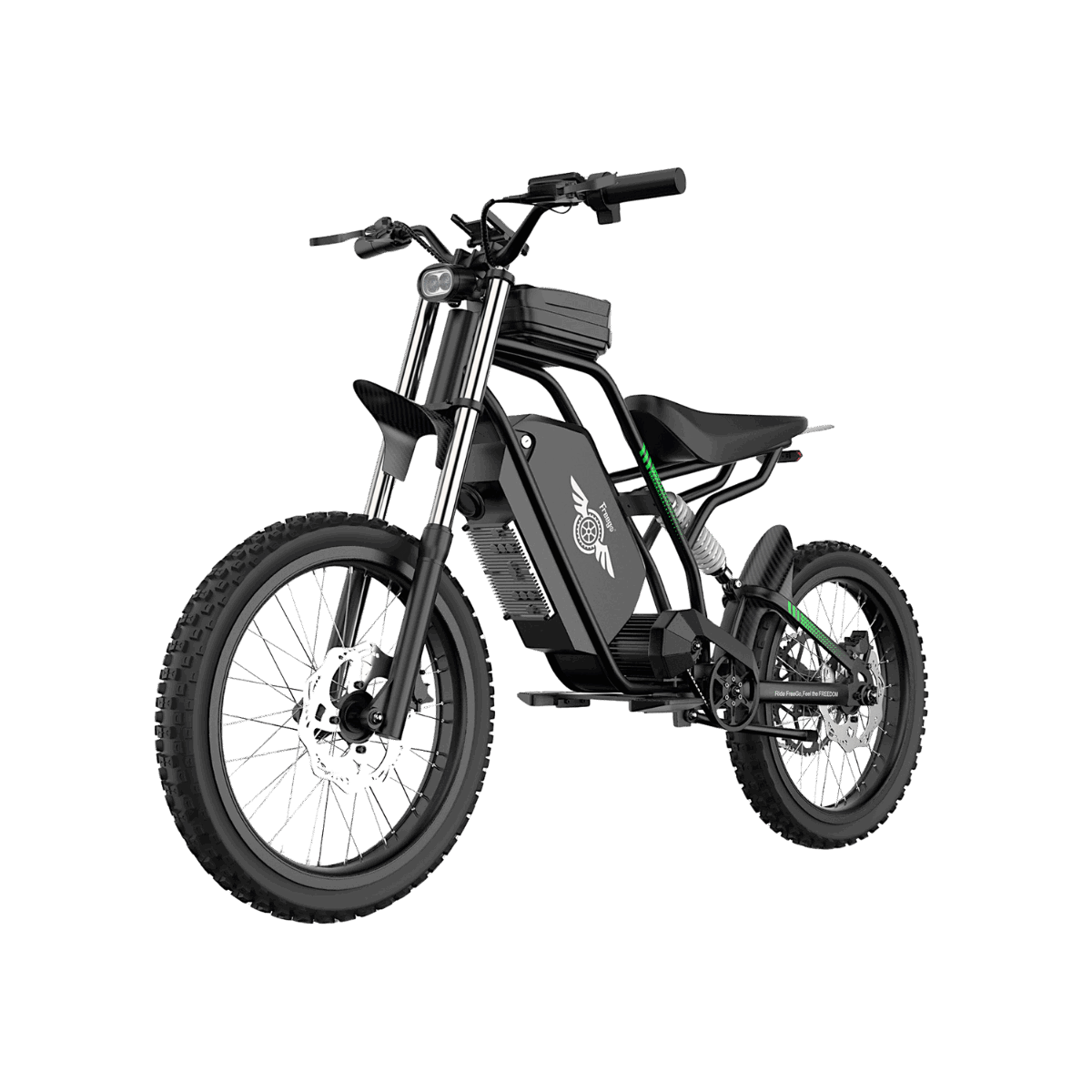

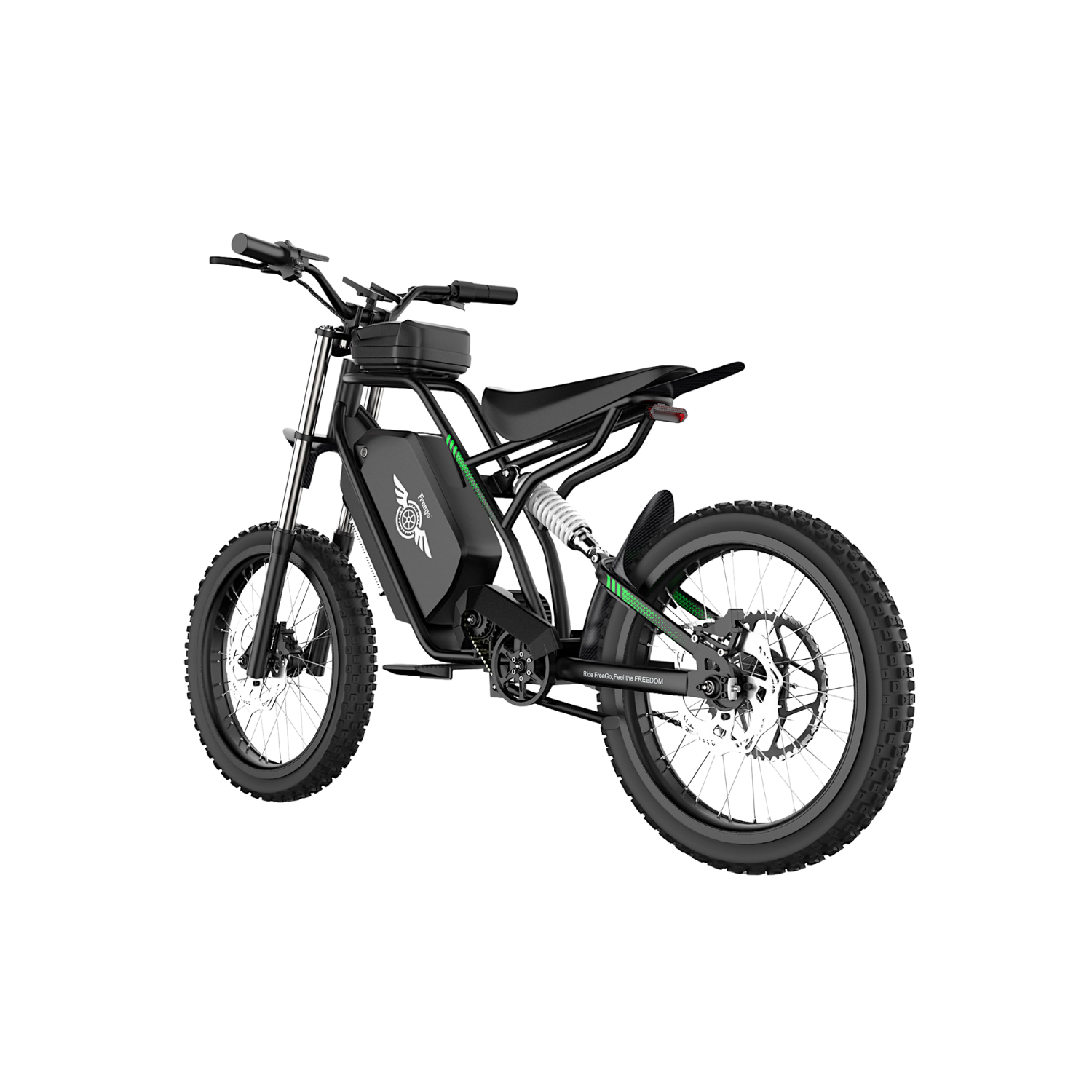

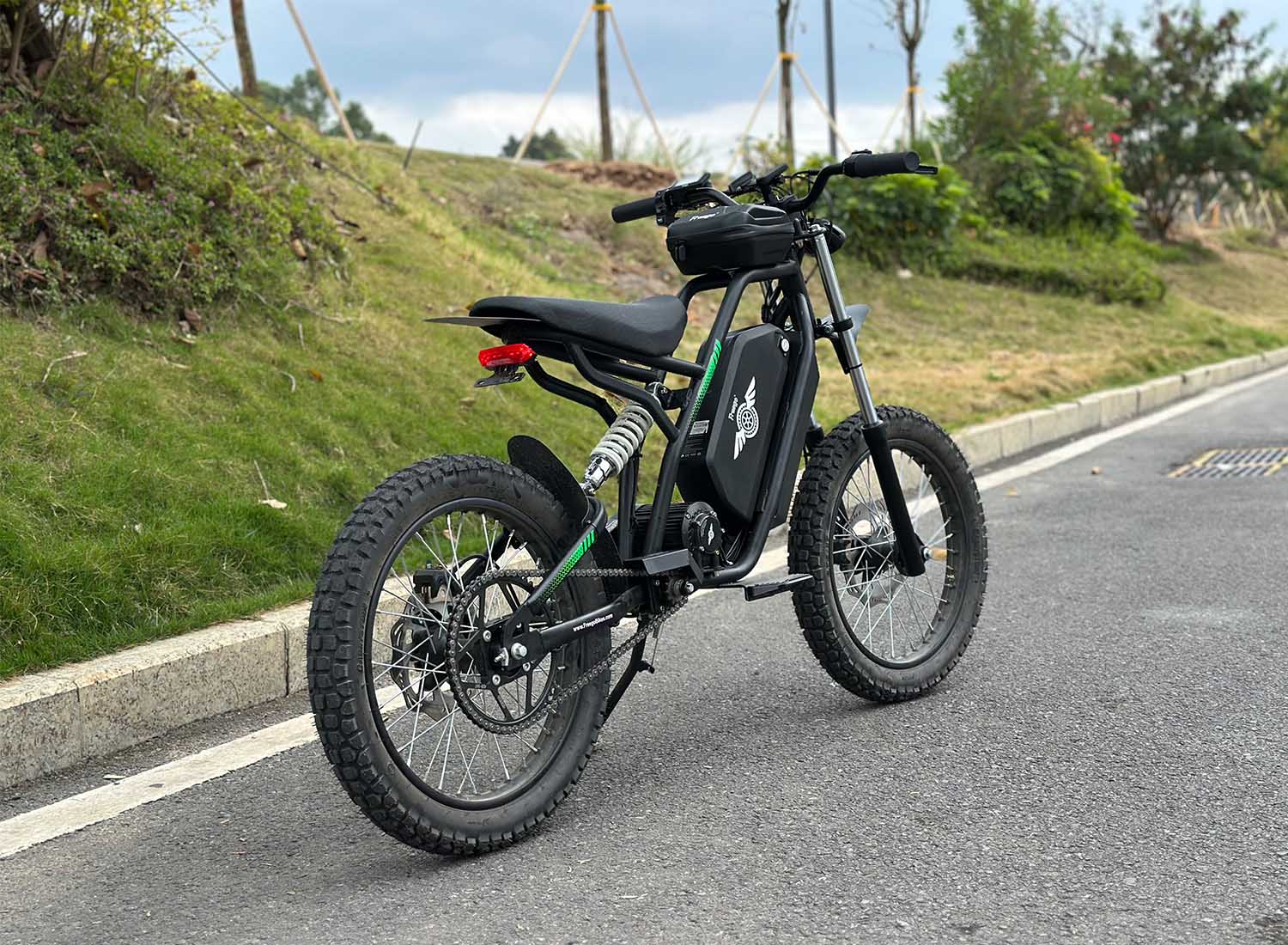

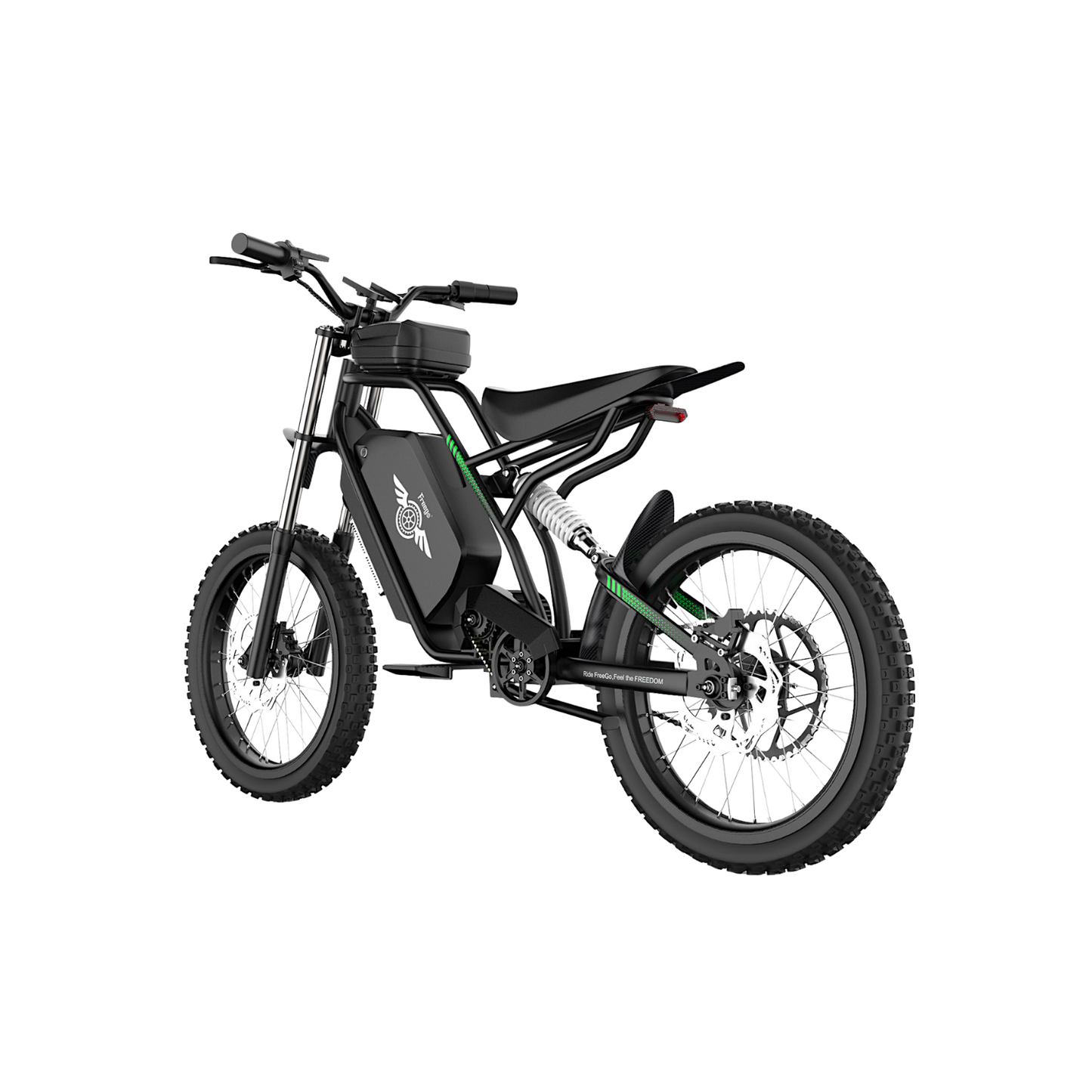

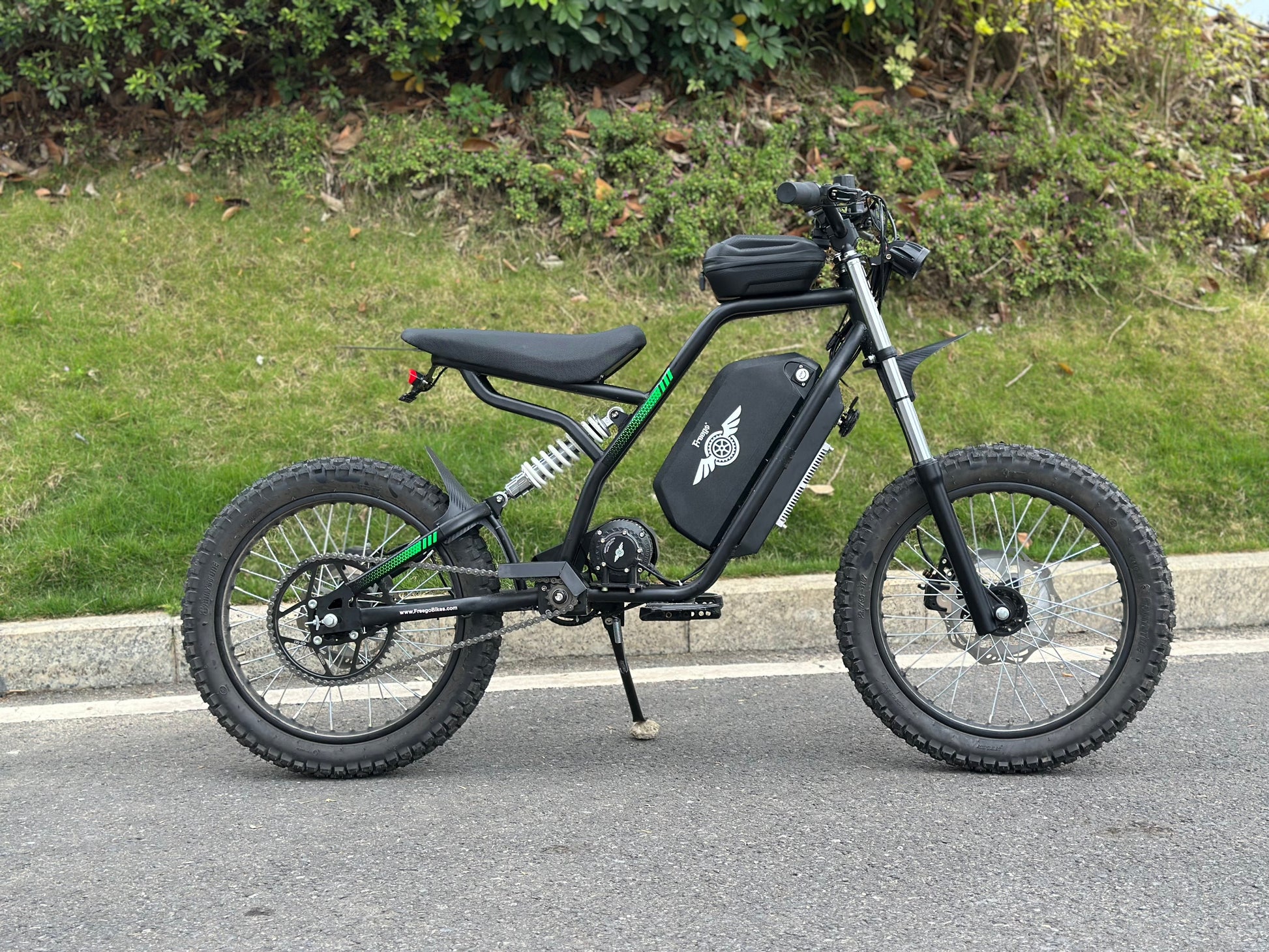

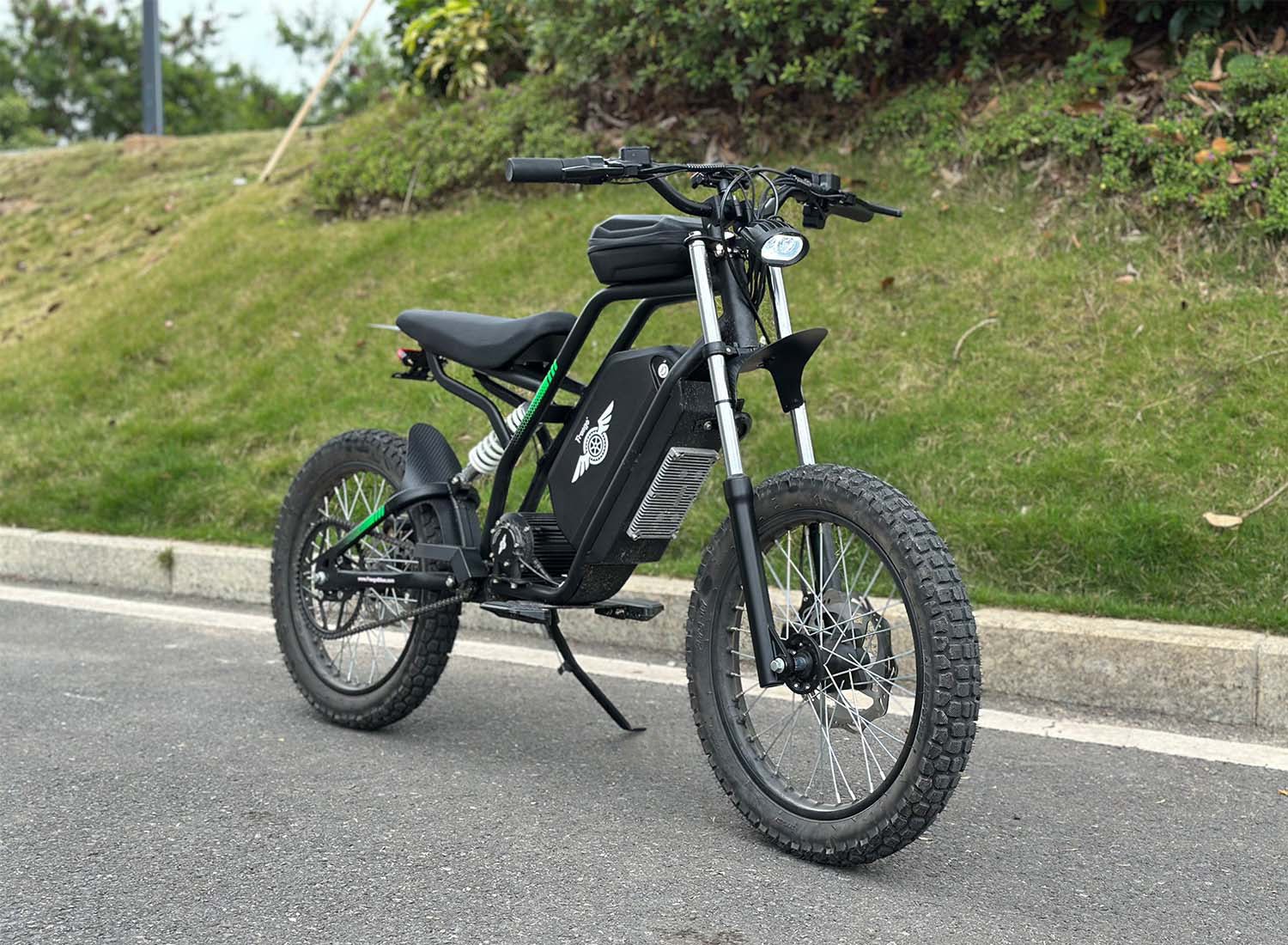

Freego Nova 3 |
| Max Speed |
40mph (64km/h) Varies depending upon load and road condition. 5 Speed levels available. Speed 1: 10MPH, Speed 5: 40MPH |
| Motor Power Output |
1000 Watts (nominal), 3000Watts (peak) Mid drive Brushless Motor (DC) |
| Battery |
60V, 25Ah(1500Wh) with 80 Lithium Battery cells (27100 type) |
| Charging Time |
5-8 H |
| Riding Range |
Eco mode (at 10mph): 50 miles Sports mode (at 40mph): 20 miles |
| Controller |
Brushless Motor Controller 80A/260A |
| Motor Activation Conditions/Modes |
Triggered by either an electric throttle only |
| Throttle Type |
Half-Twist |
| Frame Material |
High-strength Steel Pipe |
| Max Loading |
264 lbs (120kg) |
| Net Weight |
117 lbs (53kg) including battery (battery 20 lbs) |
| Package Size |
59*11.8*32 inch (150*30*83cm) |
| Transmission Gears |
This transmission system achieves a 1:9.6 reduction ratio via two-stage speed reduction. The first stage uses a pulley (23:51 ratio), and the second uses a chain sprocket (13:56 ratio). |
| Brake System |
Hydraulic Disc Brake on Front and rear wheels. 2- piston hydraulic disc brakes + 220mm disc rotors |
| Suspension |
High-Performance Hydraulic Front & Rear Shock Absorbers |
| Light |

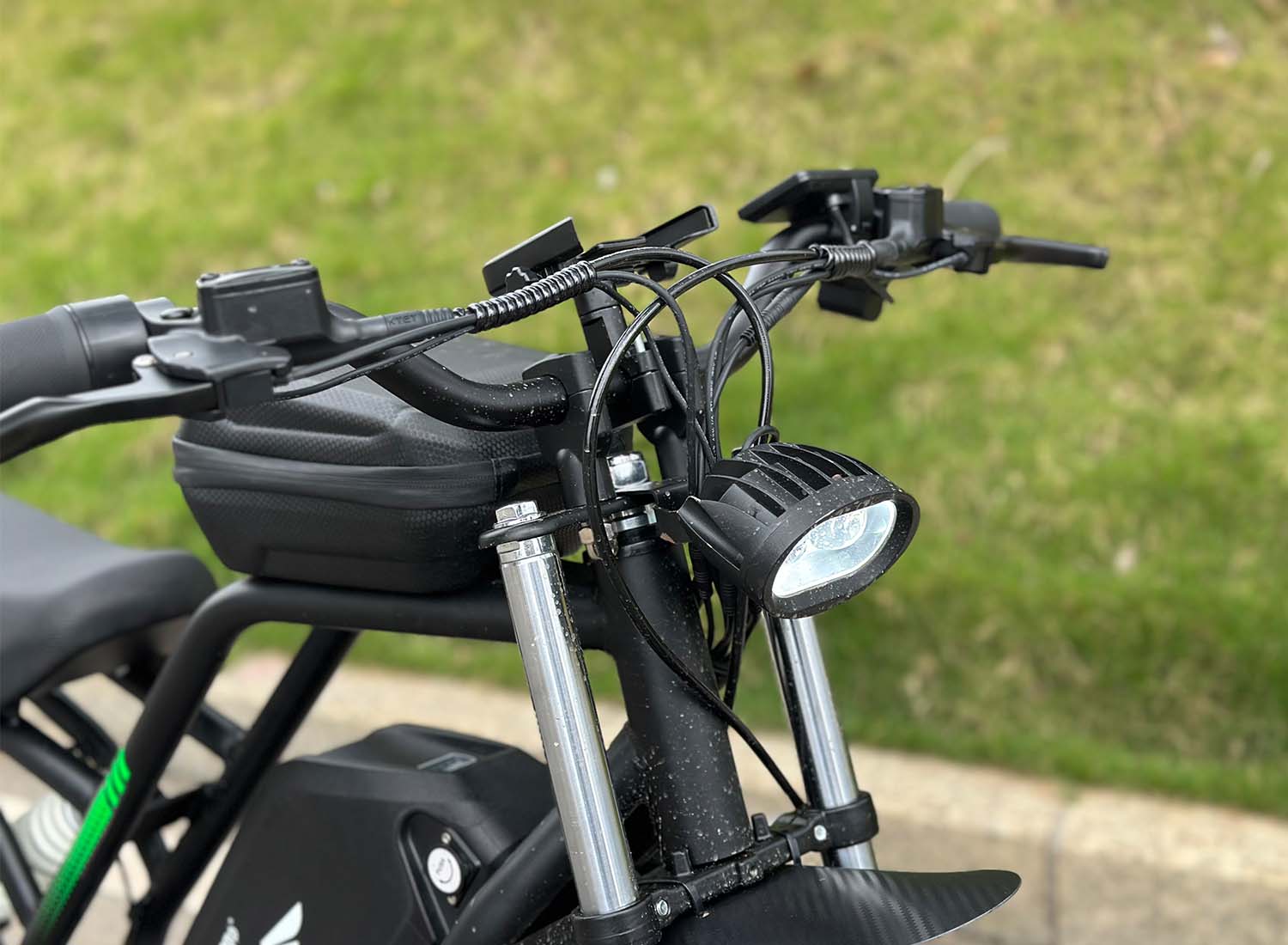

LED headlight & rear brake light |
| Suggested Rider Height |
4'8"-6'1" (144-186cm) |
| Wheel Type & Size |
Spoke Wheels, Front/Rear 17 x 1.4 Alloy Rims |
| Tire Size |
Fat tire 80/100 - 17(3.15×17 inches) for both wheels |
| Tire Types |
Tubed, pneumatic motorcycle-grade tires, puncture-resistant |
