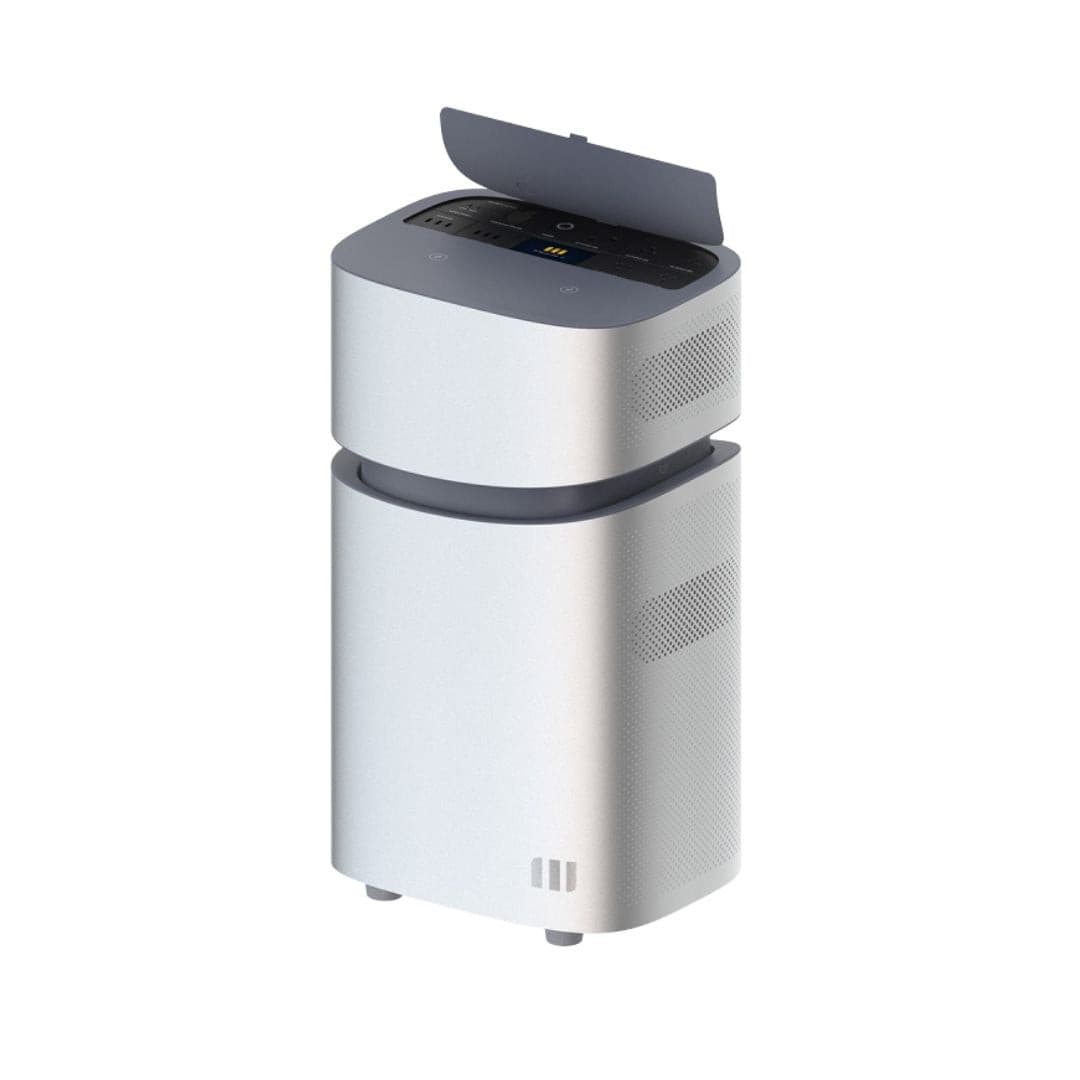

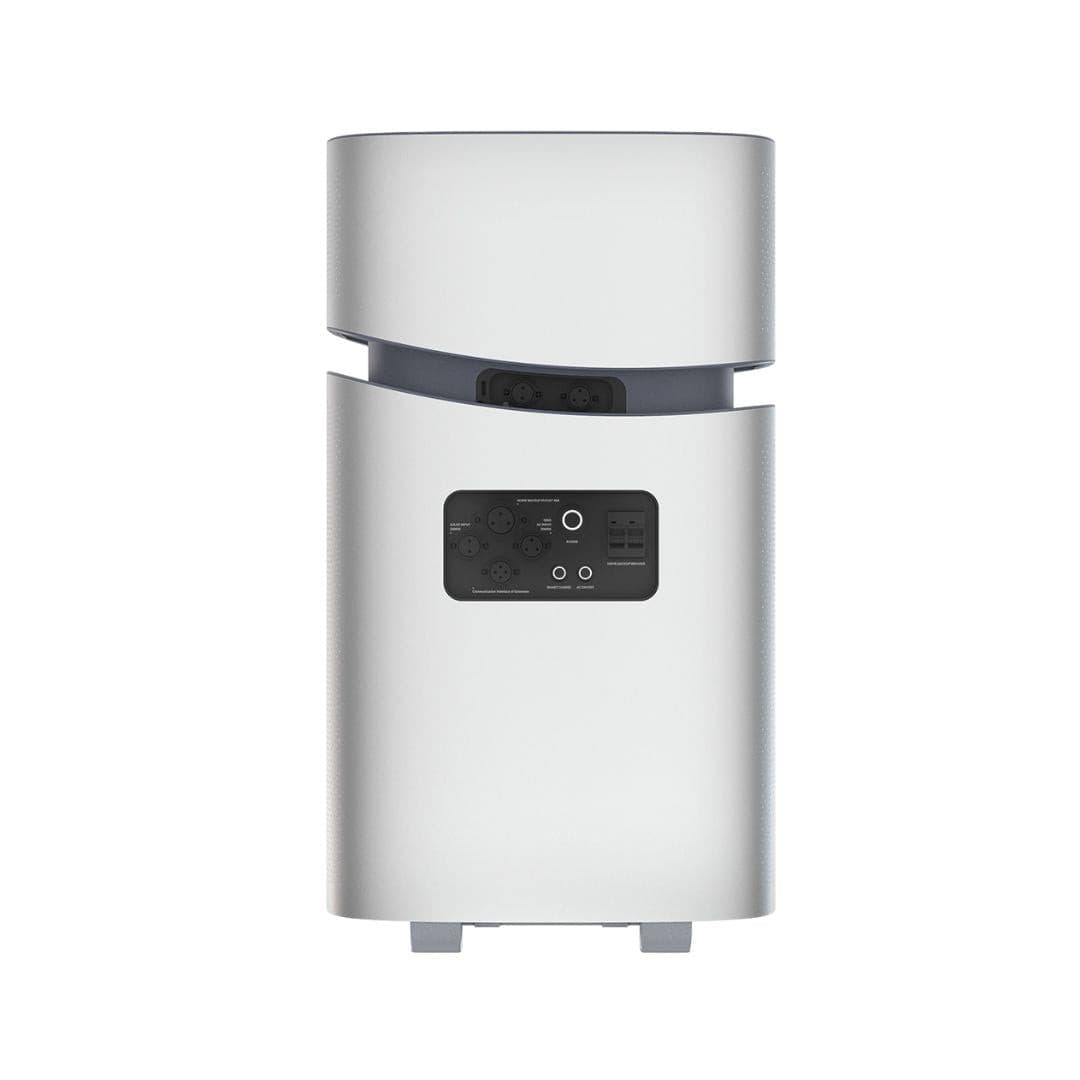

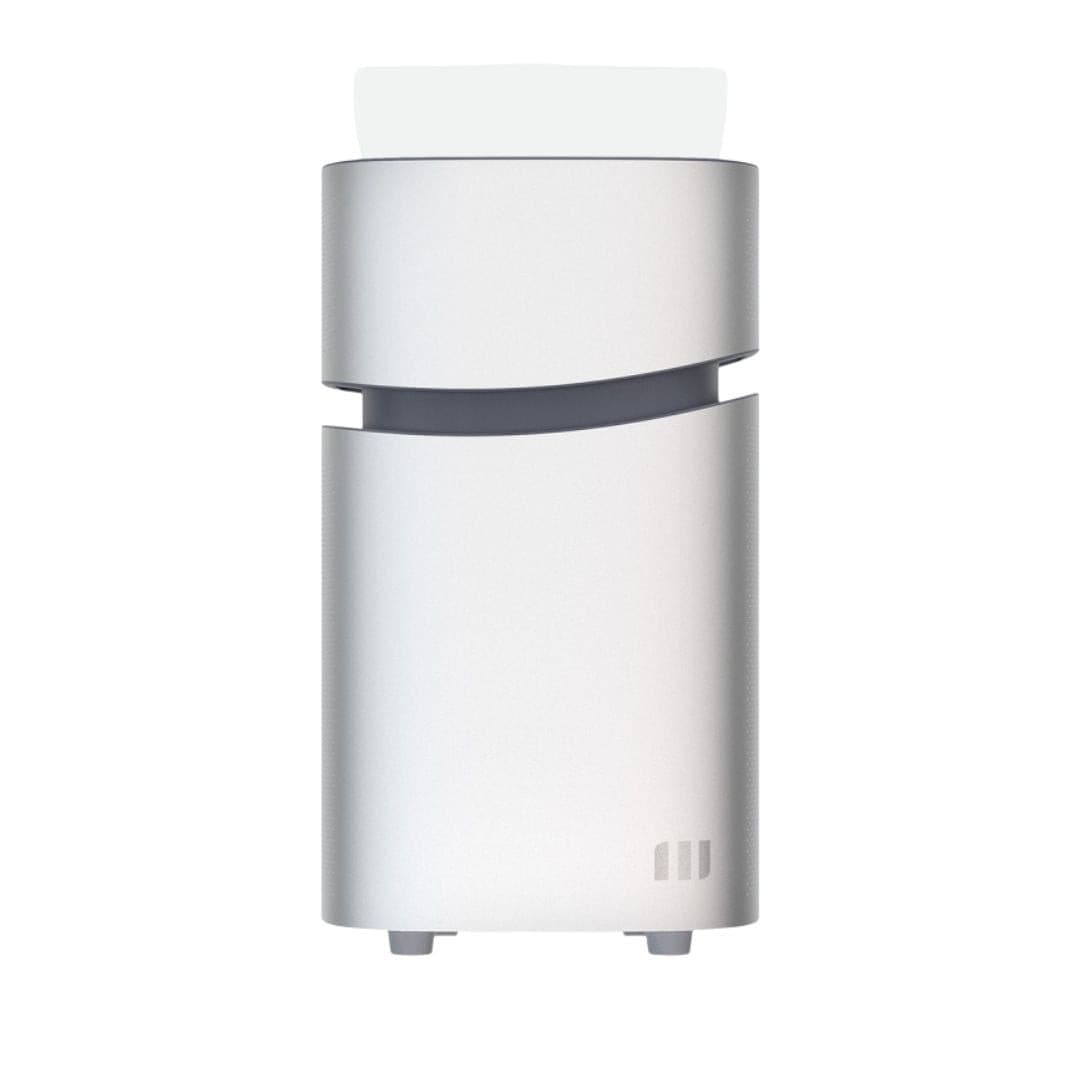

MANGO POWER| Union, 6.9 KWh Super-Capacity Home Backup Battery
MANGO POWER| Union, 6.9 KWh Super-Capacity Home Backup Battery
Couldn't load pickup availability
- 6.9kWh Large Battery
- 4350W Output
- Ultimate 95% Efficiency
- Detachable & Expandable
- 2.5H Fast Charging

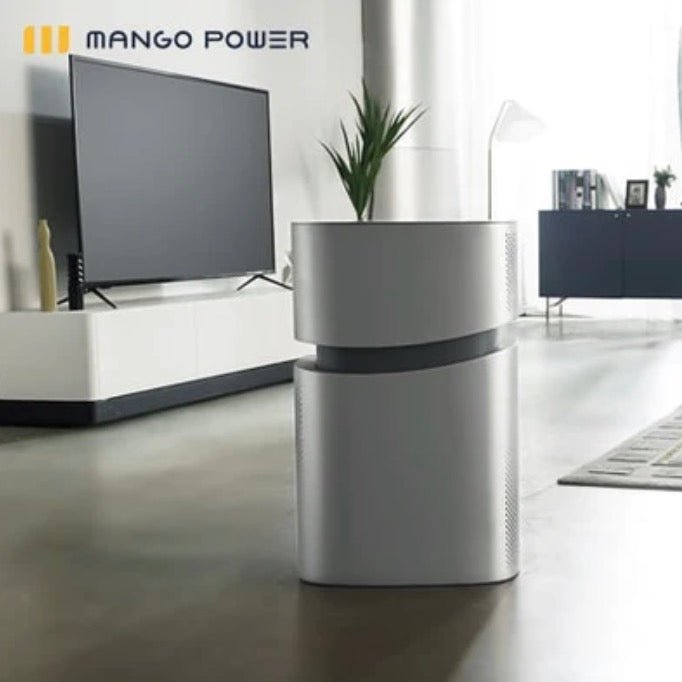

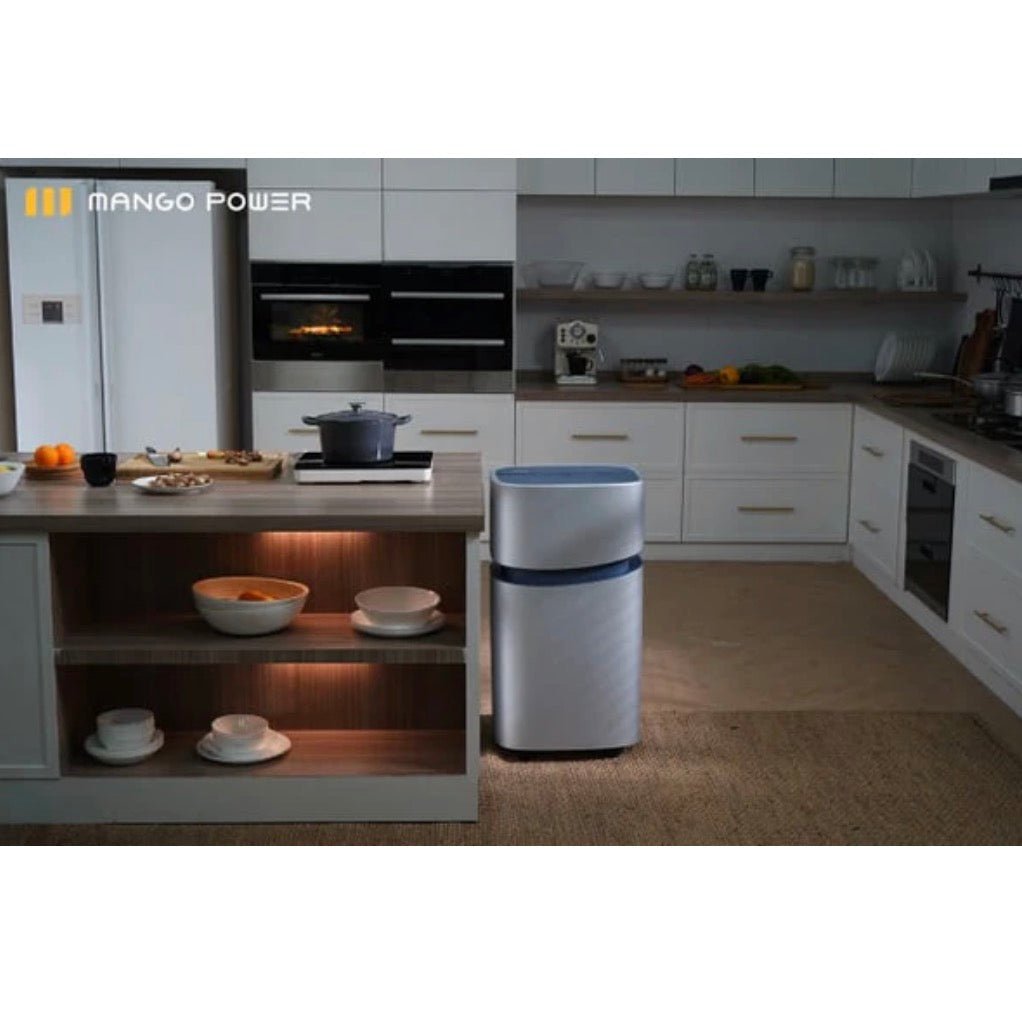

Mango Power Union delivers an all-in-one energy solution housed in one device
The Worlds’ First Integrated Home and Portable Battery

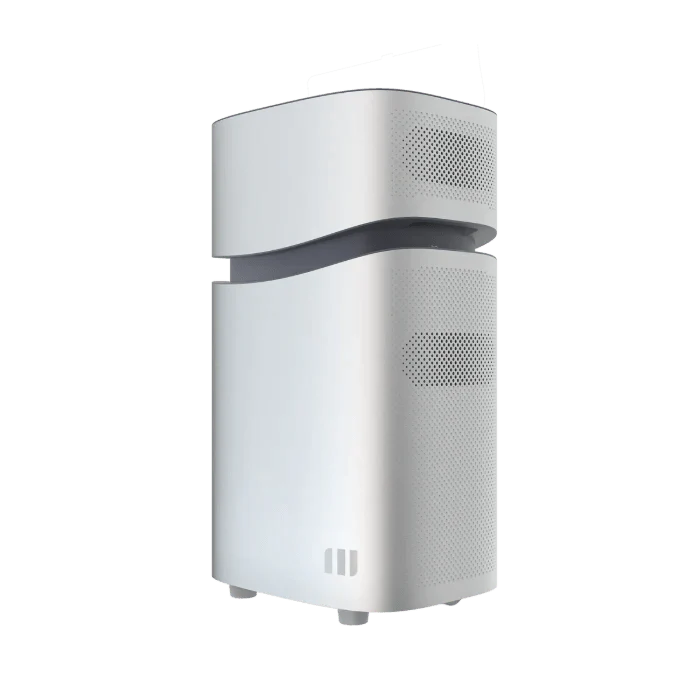

All in One Design

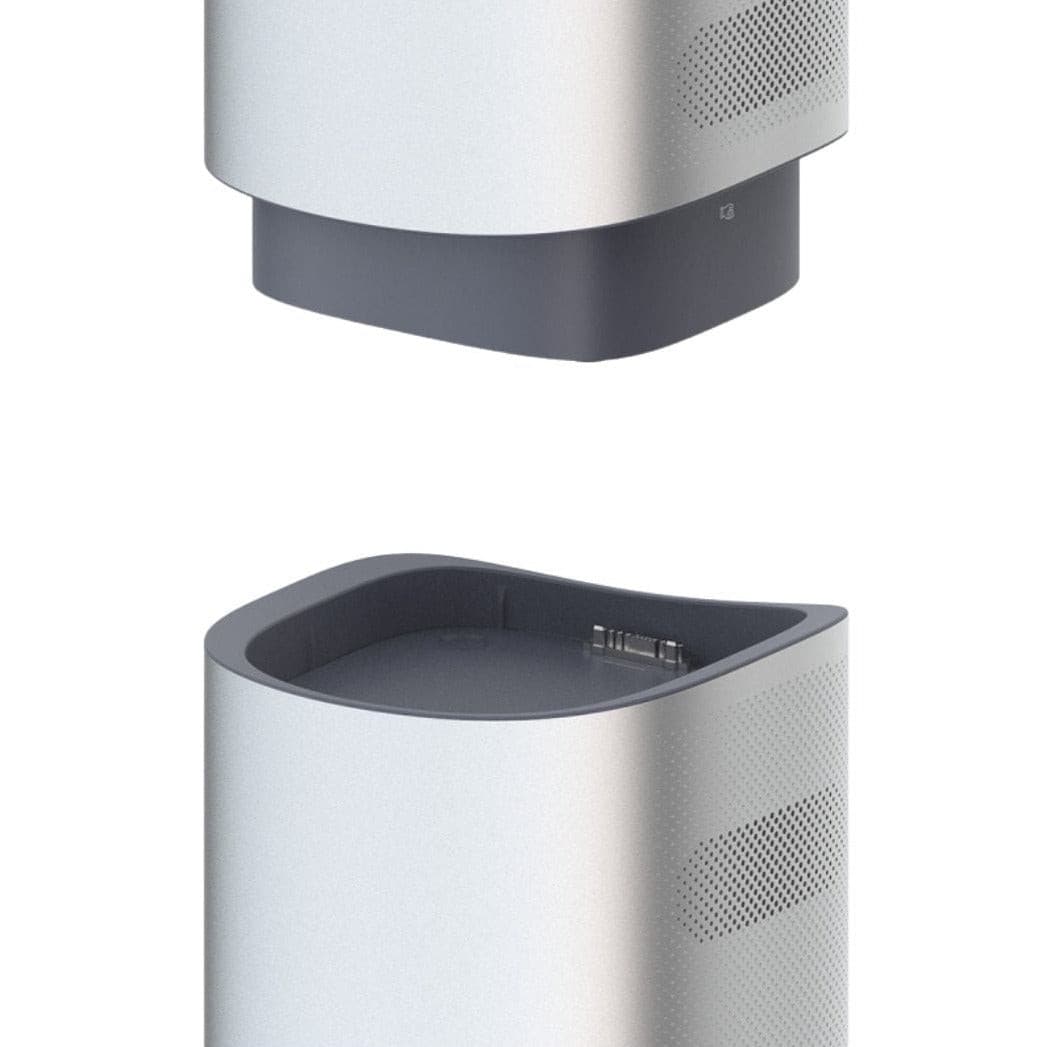

Unlike the average home battery or portable power stations that can only light up outdoor life, the Mango Power Union delivers an all-in-one energy solution housed in one device. The dedicated mUnion Connection combines the Power Home home battery and the Power Move portable power station into a single sleek, stunning package that swirls with ambient light and redefines aesthetics for an independent energy device. Powerfully beautiful home energy starts here.
Learn More
Power Move 2.3kWh / 2kW

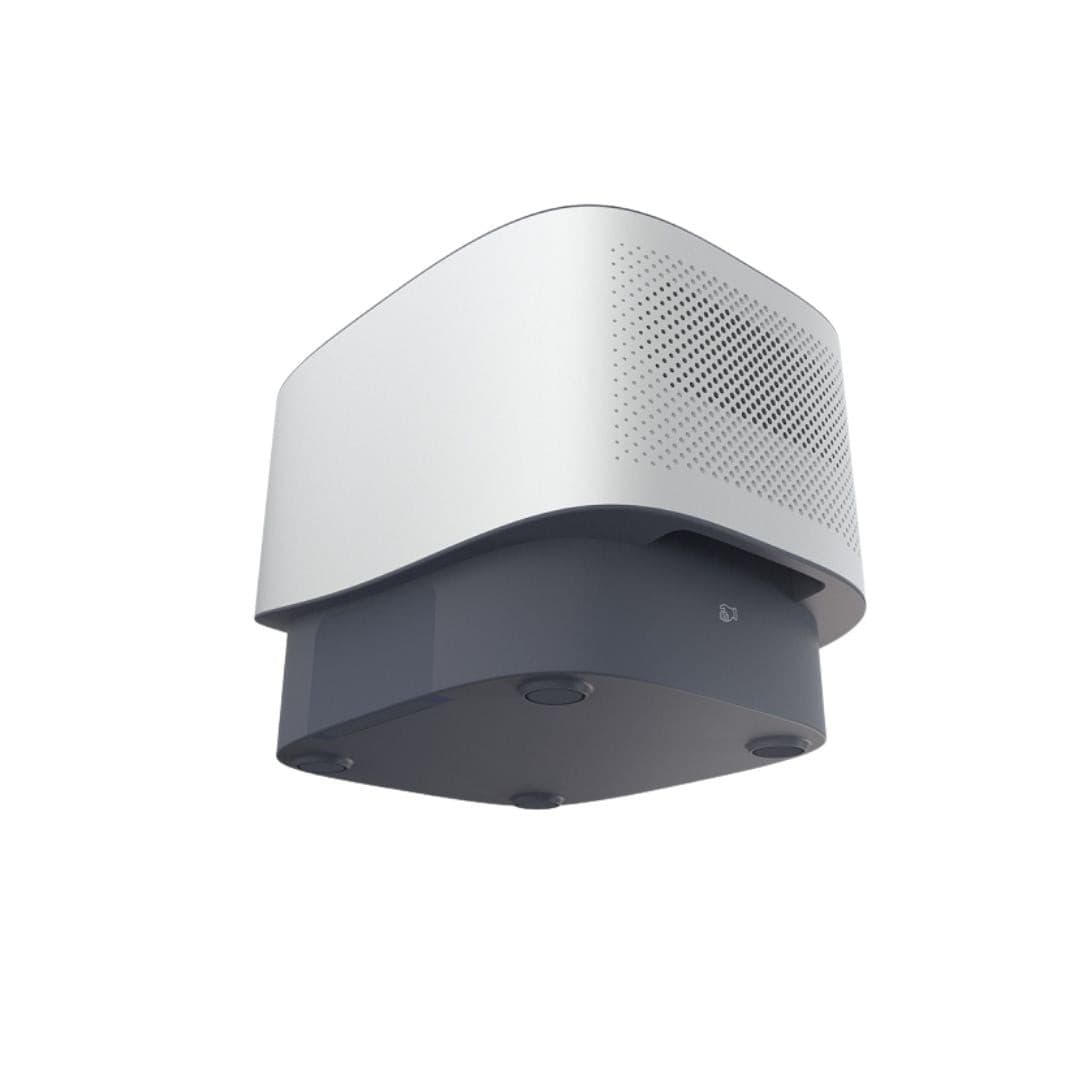

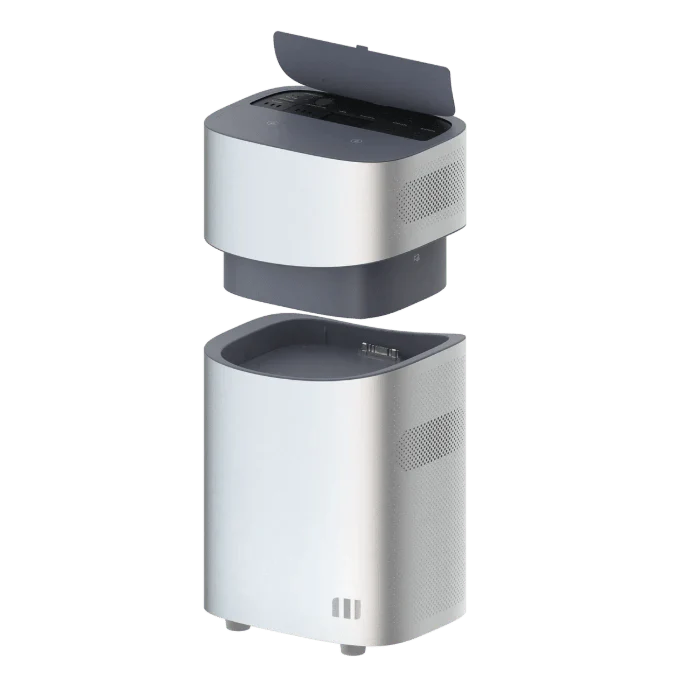

Detachable Portable Power Station

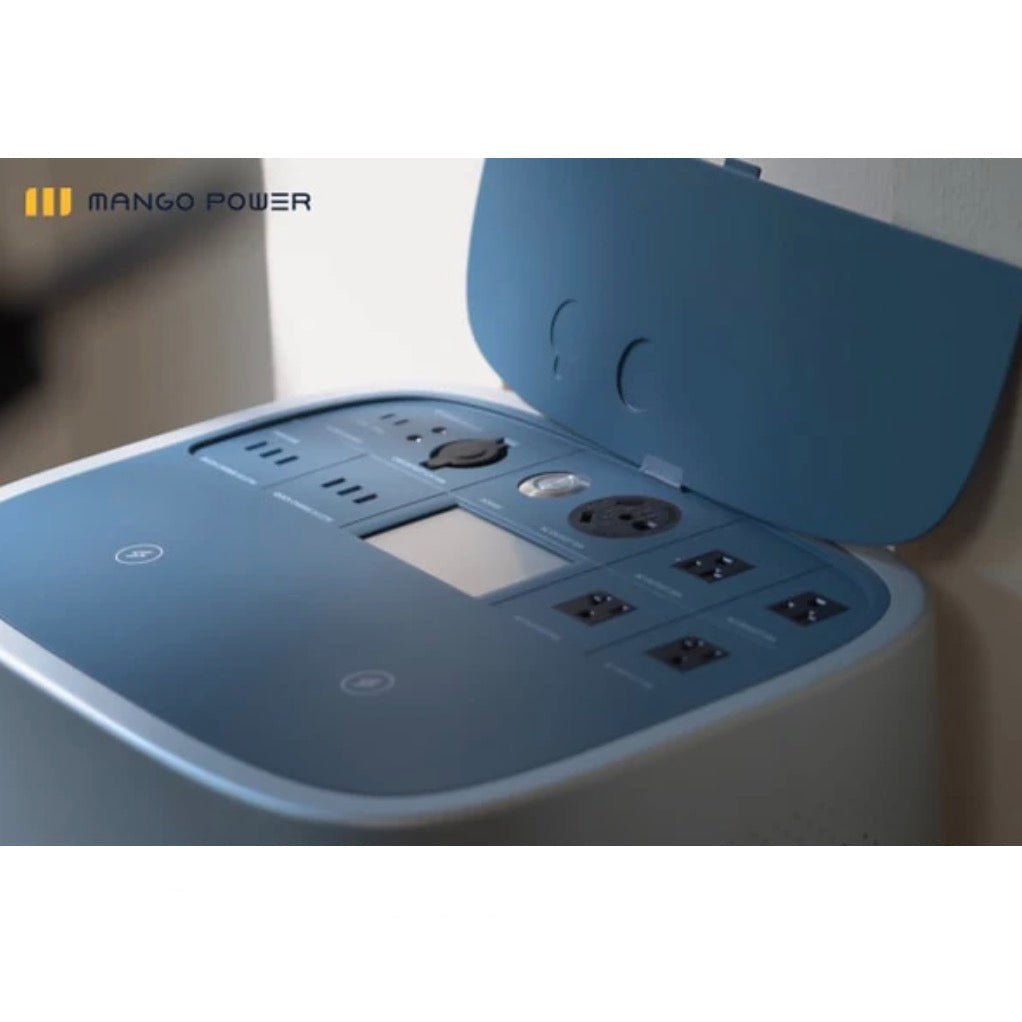

The Power Move equips you with reliable portable power for camping, tailgating, off-grid events, and workshops with a 2.3kWh battery and supports 2kW AC output. It can handle surges up to 4kW from power tools, refrigerators or air conditioners, so it will power anything anywhere. It includes 16 output ports including AC, USB-C, USB-A, wireless charging and car power output so you can meet all of your various needs.
Learn More
Solar and Grid
Fast Charging Any Way
With the World's first built-in dual PV inverter, the Mango Power Union support 2kW MPPT solar charging (60V-150V) and 3.3kW AC charging. You can charge the Mango Power Union with roof solar system or portable panels, whatever the situation calls for. The smart MCU (Micro Control Unit), DSP (Digital Signal Processor) and BMS (Battery Management System) algorithms keep charging fast and limit wear on the battery.
Manage Your Energy from Anywhere
Smart App Control
See and control your home’s energy production and consumption in real-time with the Mango Power App. Customize your energy usage, optimize for independence, protect against outages, or increase your savings; whatever your goals, the Mango Power Union lets you use your energy smarter.
Learn More
Best Battery in the Energy
Storage System Market
mCell
The High-Class EV Polymer LFP Battery Cell (Ni, Co, Mn Battery)
Unlike normal 18650 cells, the Mango Power Union uses a unique cell structure: the Polymer NCM EV Battery. This enables a current 4-times greater in each cell than in a normal LFP battery. Energy density reaches 194 Wh/kg, 38% higher than other products and the battery has a working temperature of Charging: 0°C~55°C (32°F~131°F) Discharging: -30°C~60°C (-22°F~140°F).
mTurboPack
Maximize and Protect Your Battery Pack
The Optimizing Converter and smart BMS (Battery Management System) balance charging tech and sophisticated pack manufacturing so the Mango Power Union intelligently optimizes battery charging, balancing the voltage of each battery pack. This gives the Mango Power Union more than 6000+ battery charging cycles, the equivalent of 10 years of use.
Safety Always Comes First
The Mango Power Union is specially designed for safety. The built-in aerosol protector eliminates the danger of flames, 9 chipsets control and monitor the device with timely precision, and Smart Self-Checking ensures that current, voltage, total load etc., are all running within appropriate ranges.
Live Green, Live Better
The Mango Power Forest Plan
Every time the Mango Power Union gets a full charge via solar power and uses its stored energy is a 4.29 kg reduction in carbon emissions, the equivalent of 71.1 trees' carbon capture per day.
With the Mango Power App, you can easily check your power use with the Smart Energy and Carbon Footprint Report, and for every 48kWh solar power that is tracked flowing through your Mango Power device, we will plant a tree in a select national park. When the planting season is over, we’ll send you a report letting you know how your efforts created bigger, greener forests and better, greener world.
Tech Specs
Specs of Mango Power Union
General
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
Net Weight |
160 Ibs./72.58kg | 58 Ibs./ 26.35kg |
| Size | 17.6 x 13.6 x 31.7 inches/ 446 x 346 x 805mm | 17.6 x 13.6 x 13.1 inches/ 446 x 346 x 333mm |
|
Working Temperature |
-4°F– 131°F (-20°C -55°C) | |
|
Warranty |
36 Months | |
|
Certifications |
Meets US and International Safety and EMI Standards | |
|
Smart Charge |
Yes | |
|
mBoost Mode |
Yes | |
|
Running Noise |
<45dB | |
Battery
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
Battery Capacity |
6.9 kWh | 2.3 kWh |
|
Cell Chemistry |
EV-class LFP Battery Cell | |
| Life Span | Capacity Retention >80% after 4000 cycles | |
| Capacity Retention >50% after 7000 cycles | ||
|
Battery Management Systems |
Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection, DC/DC Converter Optimizer | |
Input
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
Charging Method |
AC Wall Outlet, Solar Panel | |
|
AC Charging |
3300W | 1300W |
|
Solar Input |
2x 2000W MPPT (60V-150V) (Maximum battery charging power 3300W+loading 700W) | 2000W MPPT (60V-150V) (Maximum battery charging power 1300W+loading 700W) |
|
AC Output Power |
4x 20A+1x 30A+1x 40A (backup) / 4000W | 4x 20A+1x 30A / 2000W |
Inverter
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
AC Output Power |
4x 20A+1x 30A+1x 40A (backup) / 4000W | 4x 20A+1x 30A / 2000W |
|
Surge Power |
6600W/100ms |
3300W/100ms |
|
Maximum Power Point Trackers |
2x, Supports Both Roof and Portable Solar Panels | |
|
Inverter Efficiency |
Up to 95% | |
|
New Inverter Tech |
GaN/SiC 3rd generation semiconductor | |
|
24/7 Seamless Home Backup & UPS |
Yes | Yes |
|
Backup Essential Circuits Connection |
kW/40A | N/A |
|
Scalability |
Up to 10 devices 69kWh/40kW Extension | N/A |
Output
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
Output Ports |
19 | 18 |
| AC Output | 4x 20A+1x 30A+1x 40A (backup)/ 4000W | 4x 20A+1x 30A / 2000W |
|
USB-A (6x) |
QC 3.0 27W | |
|
USB-C (1x) |
PD 65W | |
|
USB-C (1x) |
PD 100W | |
|
Wireless Charging Pad (2x) |
15W | |
|
Car Power Output |
12V/10A | |
|
DC5521 Output(2x) |
12V/5A | |
Smart Control
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
Connection |
Bluetooth and Wi-Fi Yes | |
|
App Remote Control |
Yes | |
|
OTA Upgrade |
Yes | |
|
USB Firmware Update |
Yes | |
|
Customized Mode |
Backup Power Mode / Time- based Mode / Economical Mode | N/A |
|
Smart Measurement |
Yes | |
|
Smart Energy and Carbon Footprint Report |
Yes | |
|
Smart Notifications |
Yes | |
Touch Screen
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
Size |
4.3 Inches | |
|
Resolution Ratio |
480 x 800 | |
|
Screen Pigment |
16.7M colors |
Safety
Mango Power Union (Power Home + Power Move) |
Power Move (Detachable Portable Power Station) |
|
|
Smart Self-Check System |
Yes | |
|
Aerosol Fire Protection System |
Yes | |
|
9-Chips Security System |
Yes | N/A |
What's In The Box
User Manuals
Mango Power Union User Manual
Mango Power Union & mPanel Connection Diagram
